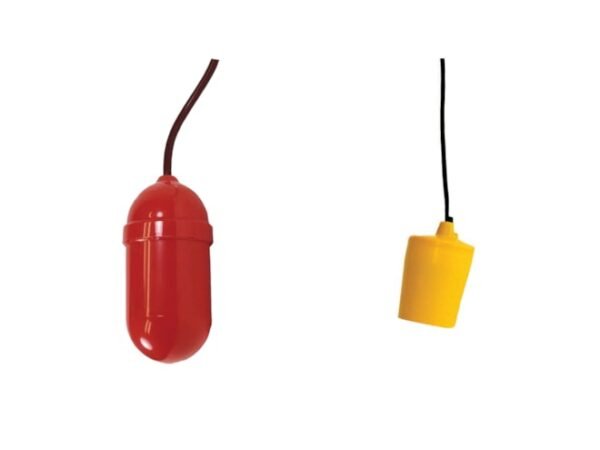

APG TLS Cable Float Switch

The APG TLS Cable Float Switch is a dual-point liquid level switch that provides reliable level detection and control for water and wastewater applications. The cable-suspended float tracks liquid levels, with built-in hysteresis for better pump control. The switch operating levels are easily adjustable by repositioning the cable weight location along the suspension cable.
The TLS features high chemical resistance, with a material construction of polypropylene or ABS resin housing, and IP68 waterproof protection. The TLS can withstand liquid temperature ranges from -10°C up through 70°C. The durable design is built for reliable operation and is not sensitive to float rotation. Two base configurations of the unit are available: the TLS-6 with a smaller 4.2×2.8in float and 11 to 39in switching differential, and the TLS-8 with a larger 6.5×3.3in float and 13 to 157in switching differential. Both iterations have a maximum pressure rating of 29psi.
The switches can be configured for high-level alarm/empty control with a normally open circuit, or for low-level alarm/fill control with a normally closed circuit. Standard cable lengths are 6m, with custom cable lengths up to 20m available, depending on the configuration. The TLS is particularly well-suited for level monitoring and pump control in sewage lift stations, sump pits, and other wastewater applications with low specific gravities down to 0.6.

Need an exact configuration? Include the complete model code, required quantity and any nameplate or specification documents with your enquiry.
