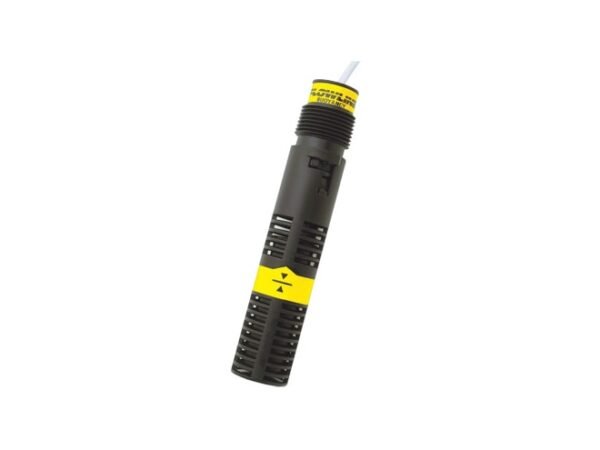

Flowline LV10 Switch Tek Vertical Buoyancy Level Switch

The Flowline LV10 Switch Tek Vertical Buoyancy Level Switch provides reliable liquid level detection of relatively clean water and
chemical solutions with a 15VA reed switch output. Media examples include boric acid and ultrapure water. The baffle body eliminates
level switch chatter caused by turbulence. The submersible polypropylene or PVDF liquid level sensor is mounted vertically inside
the tank as a high level alarm or low level alarm.

Additional features and benefits of the Flowline LV10 Switch Tek Vertical Buoyancy Level Switch include:

Baffle body and stabilized float dampen out switch chatter
Submersible polypropylene or PVDF sensor and cable for corrosive liquids
15VA dry contact selectable NO or NC state via wiring selection
Compatible with Smart Trak and Switch-Pak installation fittings
Ideal for water and waste applications
Float can wire directly to PLC/ SCADA or controller
Dynamically stabilized float minimizes the effects of relay chatter
Cage helps protect from debris
