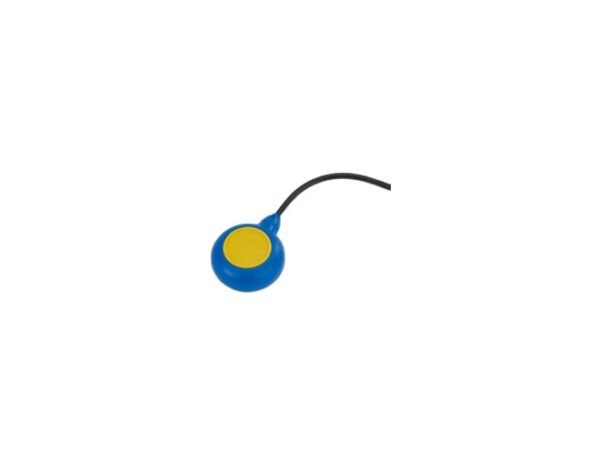

GF Signet 2285 Level Float Switch

The GF Signet 2285 Level Float Switch is suitable for level switching of various liquids, sewage in shafts, tanks,
basins or cisterns. The double-chambered float is made of injection molded tough polypropylene that ensures
good waterproof protection.

The contacting microswitch is incorporated in the float. The cable of the level switch is absolutely waterproof
and PVC insulated. Different control tasks such as liquid level monitoring and pump control can be realized. It is
mercury-free contact and suitable for level switching of drinking water, raw water or polluted liquids with low
solid content.

The level switching is done when the contact reaches the ±45° switching angle. The switching differential of the
level switch is adjustable by the position of the counterweight on the cable. The level switches should be arranged
appropriately in case of multi-level switching tasks to avoid undesired tangling of the cables.

Applications for the 2285 include:

Tap water
River water
Sump shafts
