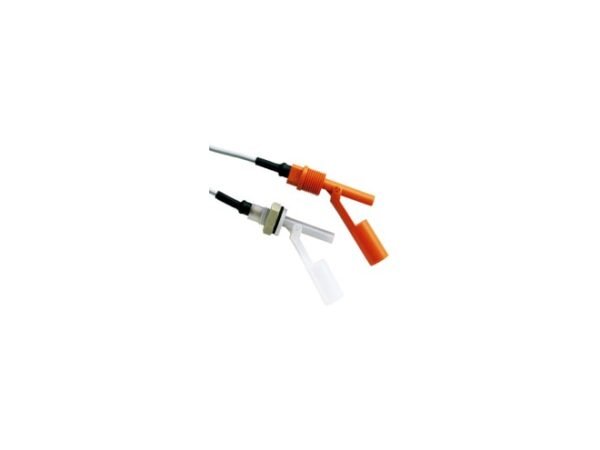

Kobold NKP Series Level Switches

The Kobold NKP plastic level switch is designed for economical control of liquids in vessels. Many industrial applications can
be realized with two different plastic versions each with three different mountings. The switch is remarkable for its
maintenance-free design, small dimensions and reed contacts with high switch capacity. The switch is mounted on the side of
the vessel. A hinged plastic float with a magnet floats up and down through the liquid level. The encapsulated reed
contact is operated by the magnet. The switching function (N/O contact / N/C contact) is determined by the installation
position. The switching function is reversed by simply rotating the switch through 180°.

Applications include:

Car washes
Cleaning machines
Plastic tanks

Need an exact configuration? Include the complete model code, required quantity and any nameplate or specification documents with your enquiry.
