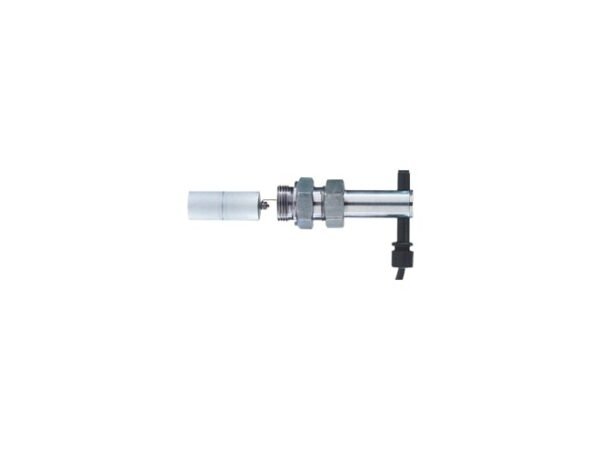

Kobold NV Liquid Level Switch

The Kobold NV liquid level switches may be installed wherever a compact device is required for monitoring liquid levels. With brass or stainless steel construction available, the Kobold NV features a temperature range of -50 to 230°F and a maximum pressure of 230 psig.
The Kobold NV liquid level switches feature a cylindrical stainless steel float that is located at one end of a horizontal balance arm. The float moves up and down with the liquid level. The float movements are transmitted through the balance arm to a permanent magnet at the opposite end. The magnet actuates a reed contact located within a movable housing. The reed contact switches on or off depending on the position of the permanent magnet and the switch housing.
The Kobold NV’s reed switch is set as a normally open (N/O) contact at the factory, ie., the contact closes as the liquid level rises. The switching function can be changed to normally closed (N/C) by moving the reed switch housing. Additionally, the switch sensitivity is adjustable so the effects of turbulence are minimized.

Need an exact configuration? Include the complete model code, required quantity and any nameplate or specification documents with your enquiry.
